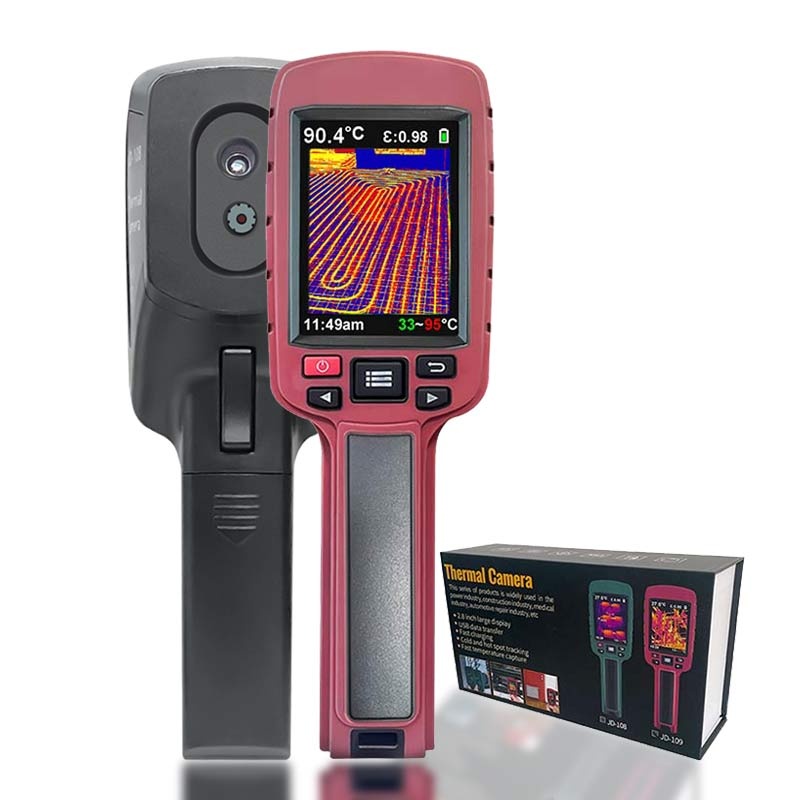

Infrared thermal imager JD109
This product is a tool type handheld infrared thermal imager that can combine surface temperature measurement with real-time thermal imaging. With 3600 infrared pixels, potential issues can be clearly displayed on a color screen, helping users quickly and accurately locate the center point, measure the cursor, and measure temperature. To increase recognition, the image can be mixed from a fully thermal image to a visual image.
Widely used in household or industrial scenarios, monitoring temperature changes in circuit boards, mechanical equipment, electrical circuits, air conditioning leak repairs, underfloor heating detection, etc., to help users detect equipment malfunctions or potential hazards.
|

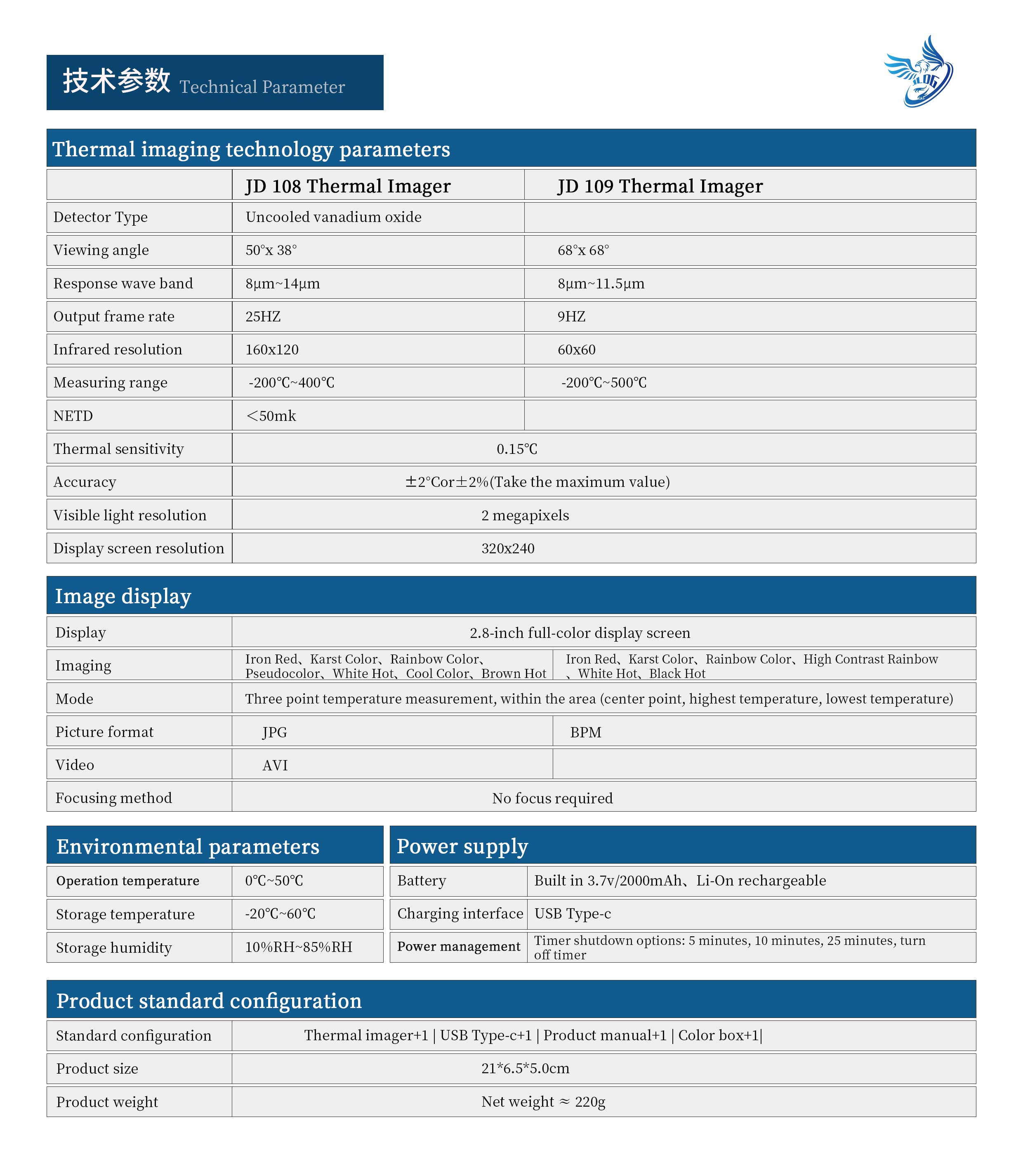

Model |
JD109 |
|
LCD
|
2.8-inch full-view high-resolution color screen
|
|
Infrared resolution
|
60×60 Pixel
|
|
Visible light resolution
|
2,000,000 pixels
|
|
Field of view
|
66°× 66°
|
|
Thermal sensitivity
|
0.15℃
|
|
Temperature measurement range
|
-20℃~500℃
|
|
Precision
|
±2℃or ±2%(Larger value)
|
|
Emissivity
|
0.1~0.99
|
|
Image capture frequency
|
9Hz
|
|
Wavelength range
|
8um~11.5um
|
|
File format
|
bpm
|
|
Operating temperature
|
0℃~40℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Storage humidity
|
10%RH~85%RH
|
