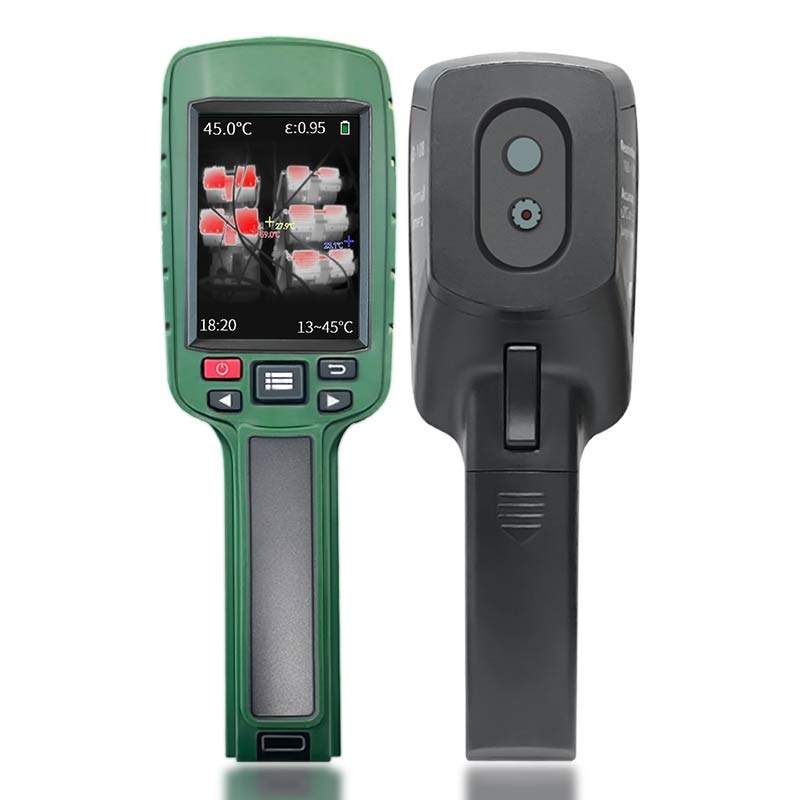

Infrared thermal imager JD108
Product features:
The JD108 thermal imager adopts a handheld design, which is easy to carry and can be operated with one hand
7 pseudo color modes: Iron Red, Karst, Rainbow, Pseudo Color, White Heat, Cool Color, Brown Heat
16GB storage space supports photography and video recording
Three point simultaneous temperature measurement, supporting center point single point area temperature measurement, highest and lowest temperature dual point temperature measurement or three-point simultaneous temperature measurement
Custom temperature value, over temperature alarm
Image fusion function: visible light+infrared fusion; Contour lines+image fusion; Five fusion degree adjustments
■ Built in rechargeable lithium battery 2000mAh, continuous operation for 4-8 hours or more, Type-C interface
Technical parameter
Product features:
The JD108 thermal imager adopts a handheld design, which is easy to carry and can be operated with one hand
7 pseudo color modes: Iron Red, Karst, Rainbow, Pseudo Color, White Heat, Cool Color, Brown Heat
16GB storage space supports photography and video recording
Three point simultaneous temperature measurement, supporting center point single point area temperature measurement, highest and lowest temperature dual point temperature measurement or three-point simultaneous temperature measurement
Custom temperature value, over temperature alarm
Image fusion function: visible light+infrared fusion; Contour lines+image fusion; Five fusion degree adjustments
■ Built in rechargeable lithium battery 2000mAh, continuous operation for 4-8 hours or more, Type-C interface

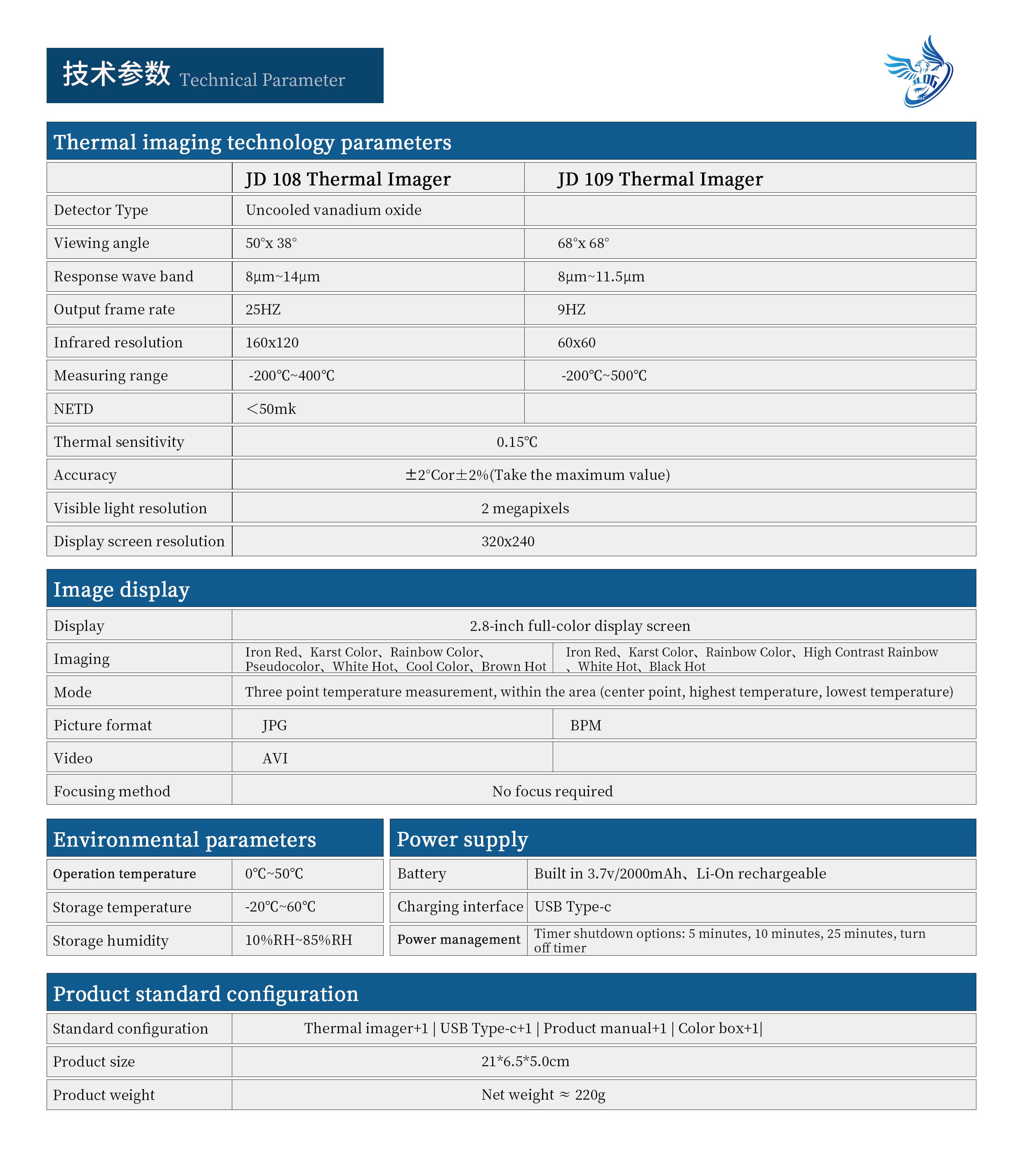

Technical parameter
|
Model
|
JD-108 |
|
Detector type
|
Uncooled vanadium oxide
|
|
Infrared resolution
|
160×120
|
|
Wavelength range
|
8μm~14μm
|
|
NETD
|
＜50mK
|
|
Thermal sensitivity
|
0.15℃
|
|
Field of view
|
50°× 38°
|
|
Output frame rate
|
25Hz
|
|
Visible light resolution
|
2，000,000 pixels
|
|
LCD
|
2.8-inch full-view high-resolution color screen
|
|
Temperature
measurement range
|
-20℃~400℃
|
|
Precision
|
±2℃ or ±2% (Larger value)
|
|
Emissivity
|
0.1~0.99 adjustable
|
|
Storage capacity
|
16GB Micro SD
|
|
File format
|
jpg
|
|
Video format
|
avi
|
|
power supply
|
Built-in 3.7V/2000mAh rechargeable lithium battery
|
|
Operating temperature
|
0℃~50℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Storage humidity
|
10%RH~85%RH
|
